PA big power 2 channels Stereo switching amplifier series

Price Terms：Exw Factory, FOB, CIF
Payment Terms：T/T, Western Union, Cash
Minimum Order：4pcs
Delivery Time：7-15 days
Service：OEM/ODM
Packing：Flight Case & Carton
Detail

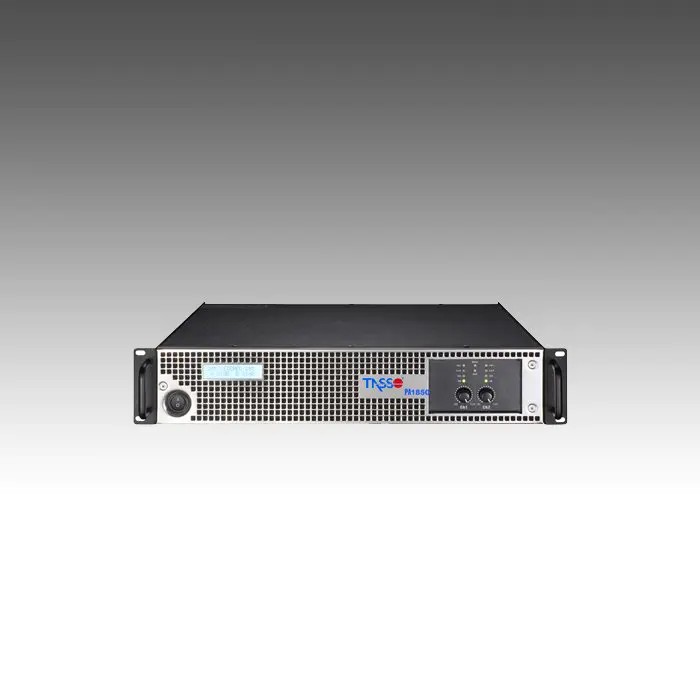

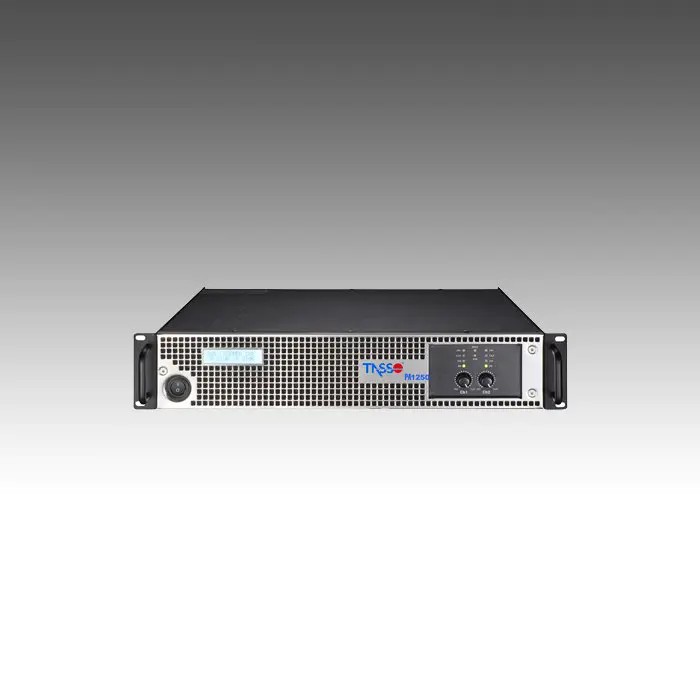

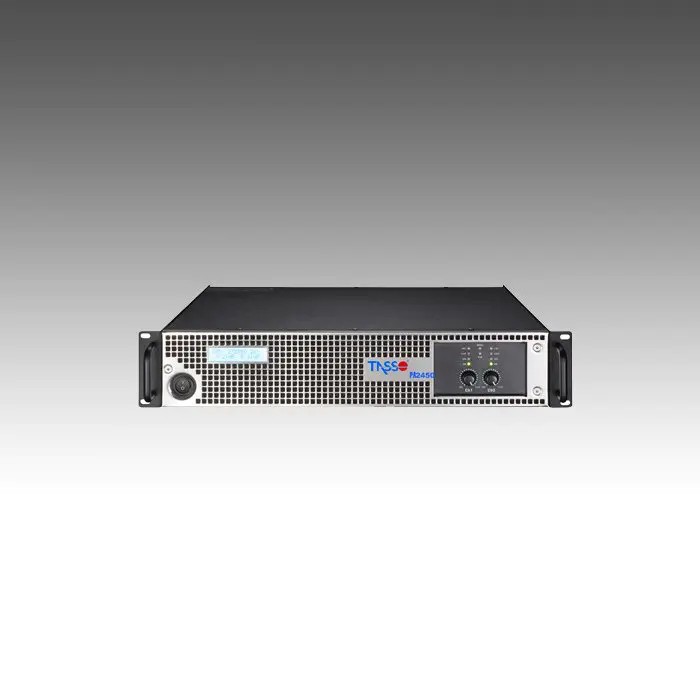

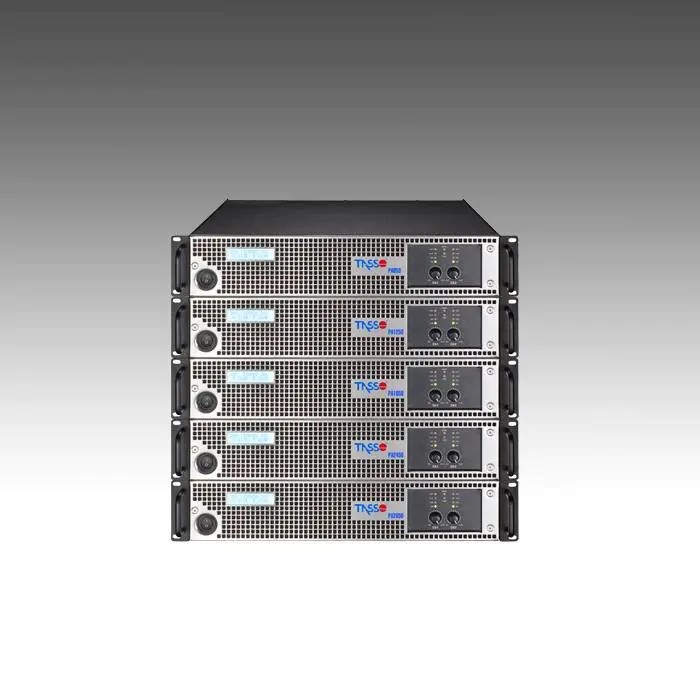

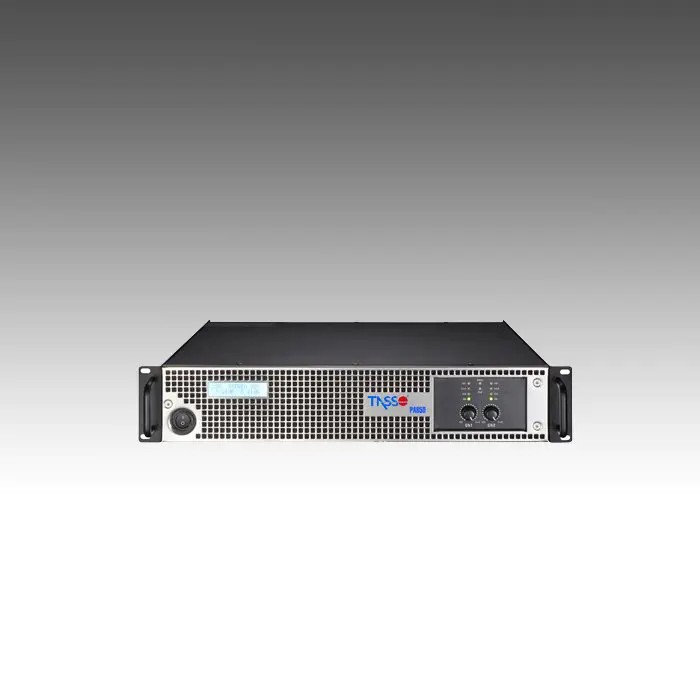

                                                 PA big power 2 channels Stereo switching amplifier series
Specification PA850 PA1250 PA1850 PA2450 PA2850
（PMPO）Peak power music   output 8 ΩStereo power(RMS)

800

1000

1200

1800

2300

4 ΩStereo power(RMS)1250 1400 1750 2300 2800
2 ΩStereo power(RMS)1600 1750 2150 3200 3500
RMS power （20Hz-20KHz,≤0.1%THD) 8 ΩStereo power(RMS) 600*2 800*2 1000*2 1500*2 1800*2
4 ΩStereo power(RMS) 900*2 1250*2 1400*2 2250*2 2800*2
2 ΩStereo power(RMS) 1250*2 1600*2 1800*2 2850*2 3300*2
Safety protection   level

DC protection,short-circuit,Overheating ,Overload,Soft start,clipping

Frquency Response

(±0.3dB)

Sensitivity

0.775v/26/32dB

Connector

XLR male、Female,speakon

Input impedance   balanced

20KΩ

unbalanced

1KΩ

SNR

≥108dB

Damping ratio

≥900

IMD

≤0.05%

Output circuit type

D+AB

Size（W×H×D）

   482×88×495mm

N.W
 8.1kg 9.3kg 11.8kg 12kg 13kg
