Quick Details
Packaging & DeliveryPackaging Details: carton or flight case
Delivery Detail: 10-15 days upon receipt of full payment
TASSO SUB low-frequency speaker expansion remained the peculiar characteristics of voice, which applies to all low-frequency amplification expansion.

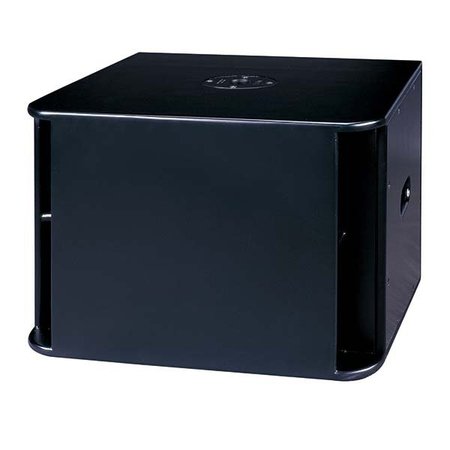

SUB speakers use 18MM imported multi-layer birch plywood material, the interior according to different SUB speakers can withstand low frequency monomer stronger impact. with a layer of anti-hit lacquer enclosure, the front panel use metal mesh as protection, cover the replacement acoustic foam material, both sides of the box are artificially mechanical type design, handling more convenient.
When two or more SUB pile up in the box, four rubber gasket at the bottom of the cabinet can be embedded into a box prevent box sliding, two parallel NL4 embedded into the rear panel.
The driver of the SUB uses dual voice differential drive technology and peak to peak. Show a real perfect voice, large annularity heat dissipation design enhanced the dissipation efficiency greatly., ensure the low temperature of the drive unit and greatly enhance the power of compression performance and reduce the distortion. SUB low-frequency speakers can provide clean, dark, the explosive low frequency sound effect.
TASSO SUB low-frequency speaker expansion remained the peculiar characteristics of voice, which applies to all low-frequency amplification expansion.
SUB speakers use 18MM imported multi-layer birch plywood material, the interior according to different SUB speakers can withstand low frequency monomer stronger impact. with a layer of anti-hit lacquer enclosure, the front panel use metal mesh as protection, cover the replacement acoustic foam material, both sides of the box are artificially mechanical type design, handling more convenient.
When two or more SUB pile up in the box, four rubber gasket at the bottom of the cabinet can be embedded into a box prevent box sliding, two parallel NL4 embedded into the rear panel.
The driver of the SUB uses dual voice differential drive technology and peak to peak. Show a real perfect voice, large annularity heat dissipation design enhanced the dissipation efficiency greatly., ensure the low temperature of the drive unit and greatly enhance the power of compression performance and reduce the distortion. SUB low-frequency speakers can provide clean, dark, the explosive low frequency sound effect.

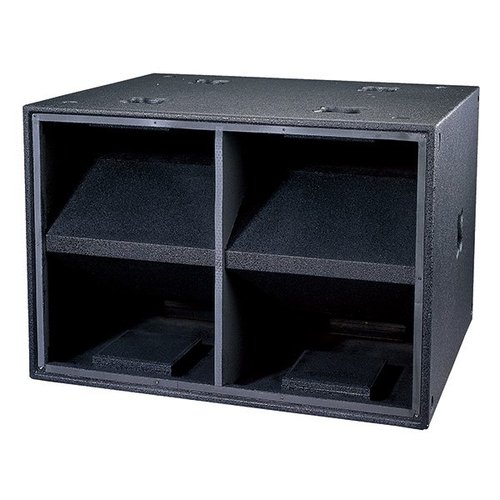

| SUB184HP |
 | Type Component Nominal Impedance RMS Power Handling Peak Power Handling Frequency Response Sensitivity(1W/1M) Max. SPL Recommended Amp Dispersion Dimension HWD(mm) Shipping HWD(mm) NW/GW(Kg) | Big Mac Sub–bass 18"×4 2×4Ω 2400W 4800W 35Hz-300Hz 110dB 141dB TP1.6K or I12 for 1pc N/A 1166×586×855 1250×680×1010 (0.86CBM) 143/151 |
|
|
|
| SUB184B |
 | Type Component Nominal Impedance RMS Power Handling Peak Power Handling Frequency Response Sensitivity(1W/1M) Max. SPL Recommended Amp Dispersion Dimension HWD(mm) Shipping HWD(mm) NW/GW(Kg) | Big Mac Sub–bass 18"×4 2×4Ω 2000W 4000W 35Hz-300Hz 109dB 140dB TP1.3K or I9 for 1pc N/A 1166×586×855 1250×680×1010 (0.86CBM) 138.5/146.5 |
|
|
|
| SUB184B |
 | Type Component Nominal Impedance RMS Power Handling Peak Power Handling Frequency Response Sensitivity(1W/1M) Max. SPL Recommended Amp Dispersion Dimension HWD(mm) Shipping HWD(mm) NW/GW(Kg) | Big Mac Sub–bass 18"×4 2×4Ω 2000W 4000W 35Hz-300Hz 109dB 140dB TP1.3K or I9 for 1pc N/A 1166×586×855 1250×680×1010 (0.86CBM) 138.5/146.5 |
|
|
|

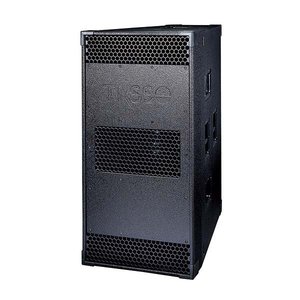

| SUB288HP |
 | Type Component Nominal Impedance RMS Power Handling Peak Power Handling Frequency Response Sensitivity(1W/1M) Max. SPL Recommended Amp Dispersions Dimension HWD(mm) Shipping HWD(mm) NW/GW(Kg) | Port loaded sub 18"×2 4Ω 1200W 2400W 30Hz-300Hz 110dB 140dB TP1.6K or I12 for 2pcs N/A 574×1400×770 690×1510×890(0.92CBM) 122/128 |
|
|
|
| SUB288B |
 | Type Component Nominal Impedance RMS Power Handling Peak Power Handling Frequency Response Sensitivity(1W/1M) Max. SPL Recommended Amp Dispersions Dimension HWD(mm) Shipping HWD(mm) NW/GW(Kg) | Port loaded sub 18"×2 4Ω 1000W 2000W 38Hz-300Hz 109dB 139dB TP1.3K or I9 for 2pcs N/A 574×1400×770 630×1460×830(0.77CBM) 110/116 |
|
|
|
| B218 |
 | Type Component Nominal Impedance RMS Power Handling Peak Power Handling Frequency Response Sensitivity(1W/1M) Max. SPL Dispersion Dimension HWD(mm) Shipping HWD(mm) NW/GW(Kg) | Port loaded sub 18"×2 4Ω 1000W 2000W 35Hz-300Hz 109dB 139dB N/A 1160×920×580 1210×970×630(0.65CBM) 118/126 |
|
|
|
| SUB188LB |
 | Type Component Nominal Impedance RMS Power Handling Peak Power Handling Frequency Response Sensitivity(1W/1M) Max. SPL Dispersion Dimension HWD(mm) Shipping HWD(mm) NW/GW(Kg) | Port loaded sub 18"×2 4Ω 1000W 2000W 35Hz-300Hz 109dB 139dB N/A 1160×920×580 1210×970×630(0.65CBM) 118/126 |
|
|
|
| SUB218HP |
 | Type Component Nominal Impedance RMS Power Handling Peak Power Handling Frequency Response Sensitivity(1W/1M) Max. SPL Recommended Amp Dispersions Dimension HWD(mm) Shipping HWD(mm) NW/GW(Kg) | Port Loaded Quaked Sub 18"×2 4Ω 1200W 2400W 32Hz-300Hz 109dB 139dB TP1.6K or I12 for 2pcs N/A 700×1020×840 780×1100×920(0.79CBM) 119/125 |
|
|
|
| SUB218B |
 | Type Component Nominal Impedance RMS Power Handling Peak Power Handling Frequency Response Sensitivity(1W/1M) Max. SPL Recommended Amp Dispersions Dimension HWD(mm) Shipping HWD(mm) NW/GW(Kg) | Port Loaded Quaked Sub 18"×2 4Ω 1000W 2000W 35Hz-300Hz 108dB 138dB TP1.3K or I9 for 2pcs N/A 700×1020×840 770×1090×915(0.77CBM) 107/113 |
|
|
|
| SUB182B |
 | Type Component Nominal Impedance RMS Power Handling Peak Power Handling Frequency Response Sensitivity(1W/1M) Max. SPL Recomended Amp Dispersion Dimension HWD(mm) Shipping HWD(mm) NW/GW(Kg) | Vented Sub–bass 18"×2 4Ω 1000W 2000W 38Hz-300Hz 105dB 136dB TP1.3K or I9 for 2pcs N/A 1066×561×780 1160×650×870 (0.66CBM) 96/101 |
|
|
|
| SUB215HP |
 | Type Component Nominal Impedance RMS Power Handling Peak Power Handling Frequency Response Sensitivity(1W/1M) Max. SPL Recommended Amp Dispersions Dimension HWD(mm) Shipping HWD(mm) NW/GW(Kg) | Port Loaded Sub 15"×2 4Ω 800W 1600W 40Hz-350Hz 108dB 138dB TP1.1K or I6 for 2pcs N/A 800×480×575 860×530×640 60/63.3 |
|
|
|
| SUB215B |
 | Type Component Nominal Impedance RMS Power Handling Peak Power Handling Frequency Response Sensitivity(1W/1M) Max. SPL Recommended Amp Dispersions Dimension HWD(mm) Shipping HWD(mm) NW/GW(Kg) | Port Loaded Sub 15"×2 4Ω 700W 1400W 40Hz-350Hz 106dB 136dB TP1.1K or I6 for 2pcs N/A 640×900×760 700×970×830(0.56CBM) 95/100 |
|
|
|
| SUB118HP |
 | Type Component Nominal Impedance RMS Power Handling Peak Power Handling Frequency Response Sensitivity(1W/1M) Max. SPL Recommended Amp Dispersions Dimension HWD(mm) Shipping HWD(mm) NW/GW(Kg) | Port Loaded Sub 18"×1 8Ω 600W 1200W 45Hz-400Hz 106dB 136dB TP1.1K or I6 for 2pcs N/A 515×795×600 590×865×665(0.34CBM) 58.5/62 |
|
|
|
| SUB118B |
 | Type Component Nominal Impedance RMS Power Handling Peak Power Handling Frequency Response Sensitivity(1W/1M) Max. SPL Recommended Amp
Dispersions Dimension HWD(mm) Shipping HWD(mm) NW/GW(Kg)... | Port Loaded Sub 18"×1 8Ω 500W 1000W 45Hz-400Hz 105dB 135dB I4 for 2pcs TP1.1K for 4pcs N/A 515×795×600 590×865×665(0.34CBM) 52.5/56 |
|
|
|
| SUB181B |
 | Type Component Nominal Impedance RMS Power Handling Peak Power Handling Frequency Response Sensitivity(1W/1M) Max. SPL Recommended
AmpDispersions Dimension HWD(mm) Shipping HWD(mm) NW/GW(Kg) | Port Loaded Sub 18"×1 8Ω 500W 1000W 45Hz-400Hz 105dB 135dB I4 for 2pcs TP1.1K or I6 for 4pcs N/A 694×560×760 860×590×690 (0.34CBM) 55/58.5 |
|
|
|
| SUB115B |
 | Type Component Nominal Impedance RMS Power Handling Peak Power Handling Frequency Response Sensitivity(1W/1M) Max. SPL Recommended Amp
Dimension HWD(mm) Shipping HWD(mm) NW/GW(Kg) | Port Loaded Sub 15"×1 8Ω 400W 800W 40Hz-300Hz 104dB 129dB I4 for 2pcs TP1.1K or I6 for 4pcs 490×690×530 560×750×590 (0.25CBM) 50.5/53 |
|
|
|
| SUB112B |
|
|
 | Type Component Nominal Impedance RMS Power Handling Peak Power Handling Frequency Response Sensitivity(1W/1M) Max. SPL Recommended Amp
Dimension HWD(mm) Shipping HWD(mm) NW/GW(Kg) | Port Loaded Sub 12"×1 8Ω 350W 700W 40Hz-380Hz 103dB 128dB I4 for 2pcs TP1.1K or I6 for 4pcs 388×550×456 455×610×520(0.14CBM) 21/24 |
|
|
|
