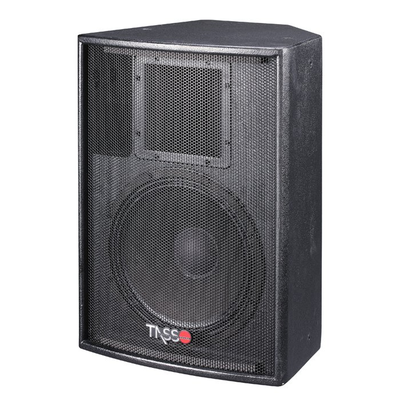

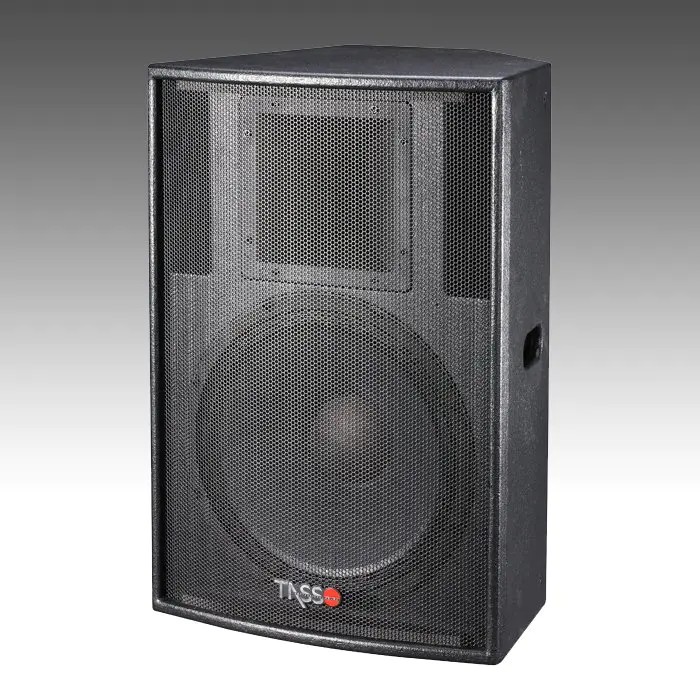

Big Power Installation Speaker CT500

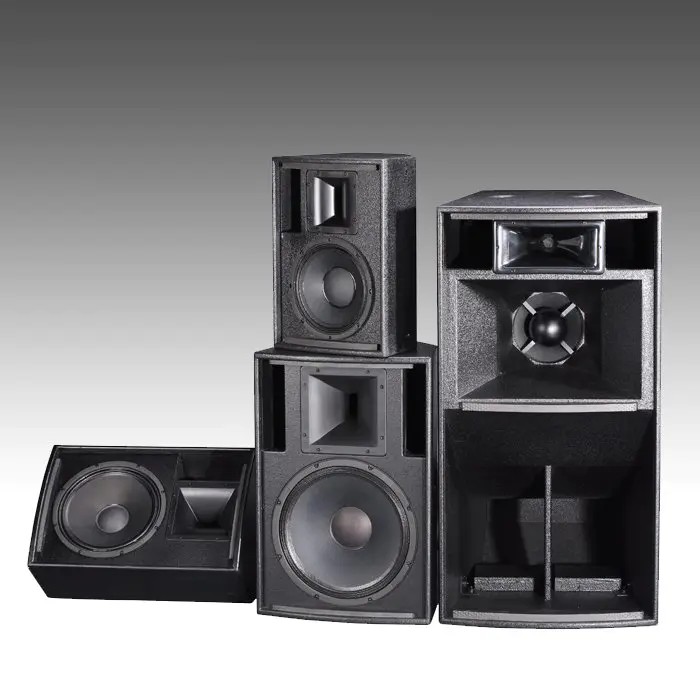

CT Series launch for large live performance, club, disco, bar and KTV room, loaded a
rotatable horn to be converted both in horizontal & vertical. CT100 and CT300
powered by Celestion HF drivers.
| CT500 |
 | Type
Component
Nominal Impedance
RMS Power Handling
Peak Power Handling
Frequency Response
Sensitivity(1W/1M)
Max. SPL
Recommended Amp
Dispersion
Horn throat size
Voice coil size
Crossover
Dimension HWD(mm)
Shipping HWD(mm)
NW/GW(Kg) | 2-way full range
15"+3"+ Horn
8Ω
450W
900W
55Hz-20KHz
105dB
129dB
I3 for 2pcs
I4 for 4pcs
80ºH×50º V
1.4"(35mm)
3"(75mm)
1.45KHz
690×470×445
775×560×535 (0.23CBM)
31/35 |
