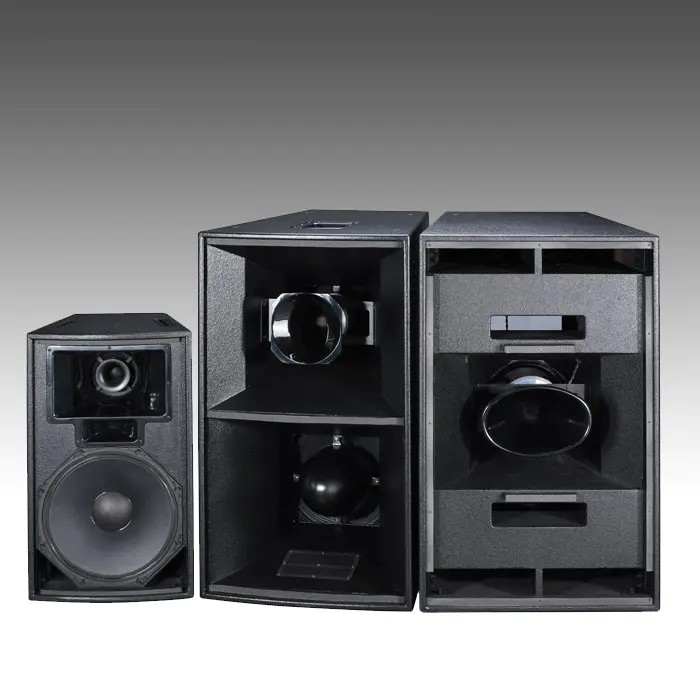

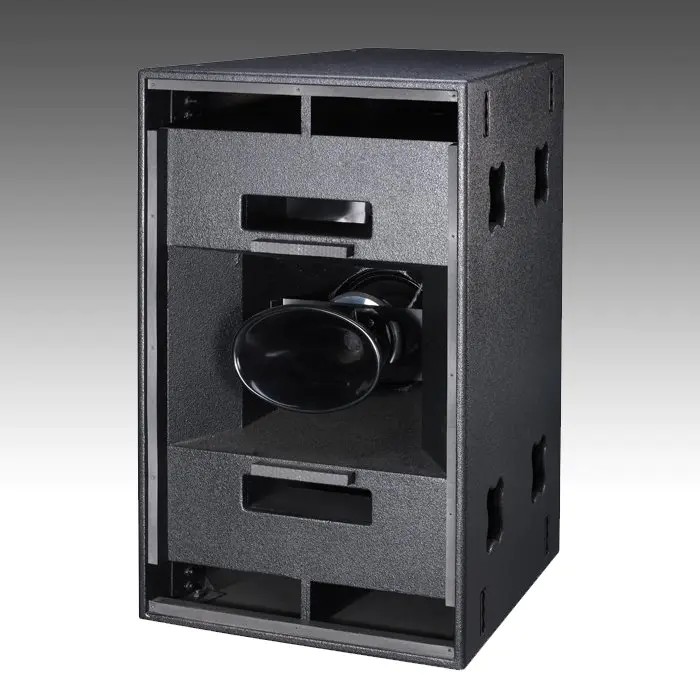

Touring Sound Speaker RX12
RX12 is designed for large indoor and outdoor performance acoustic environment, with high SPL
exceptional smooth frequency response, big dynamic and bandwidth.
| RX12 |
 | Type
Component
Nominal Impedance
RMS Power Handling
Peak Power Handling
Frequency Response
Sensitivity(1W/1M)
Max. SPL
Recommended Amp
Dispersion
Horn throat size
Voice coil size
Crossover
Dimension HWD(mm)
Shipping HWD(mm)
NW/GW(Kg) | 3-way long throw/bi-amped
15"×2+10"+3" with Horn
4Ω
LF:800W; MF:300W; HF:250W
LF:1600W; MF:600W; HF:500W
45Hz-20KHz(±3dB)
108dB
142dB
Full Range：TP1.1K or I9 for 2pcs
Bi-AMP：I3 for 2pcs M/HF
TP1.1K or I4 for 2pcs LF
60º H×40º V
1.4"(35mm)
3"(75mm)
1.8KHz
1005×575×730
1070×640×790(0.54CBM)
91.5/96.5 |
|
|
|
