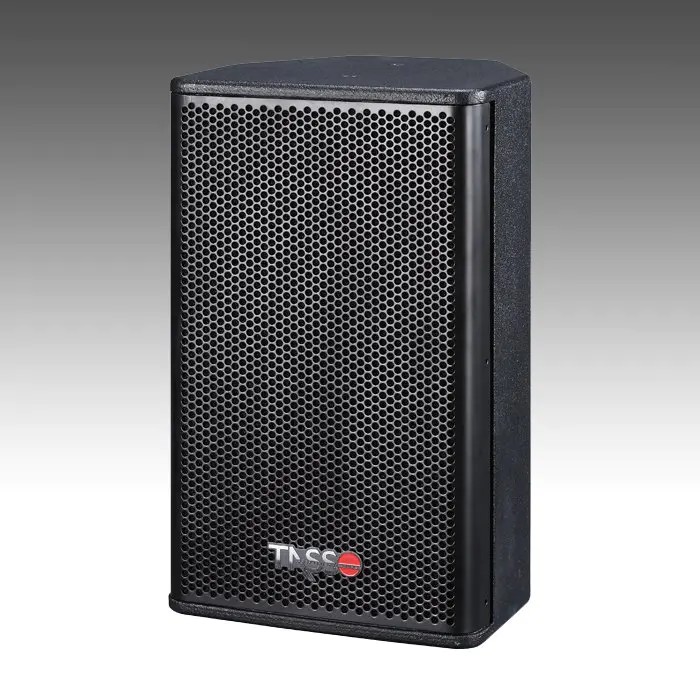

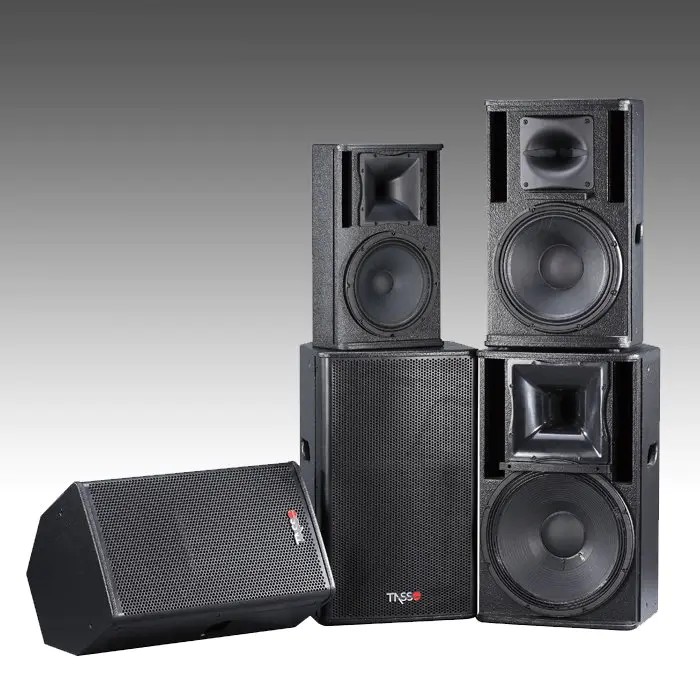

HQ series is designed for large indoor and outdoor amplication, live performance, VIP club, bar, KTV room etc. Loaded with Celestion HF driver and a 90 degree rotatable horn, it gives high dynamic acoustic pressure level and sound clarity. And the rotatable horn also make installation convenient. The combination of the compression driver and rotatable horn improve the clarity of the mid-frequency between 1KHz-4KHz. So vocal reinforcement will be more perfect.
| 10 |
| | Type
Nominal Impedance
Peak Power Handling
Sensitivity(1W/1M)
Recommended Amp
Dispersion
Horn throat size
Voice coil size
Dimension HWD(mm)
NW/GW(Kg) | 2-way full range
8Ω
600W
96dB
I1 for 2pcs
90ºH×70º V
1"(25mm)
2"(44mm)
490×300×287
21.5/24.5 |
