T2 Outdoor Active System

Price Terms：Exw Factory, FOB, CIF
Payment Terms：T/T, Western Union, Cash
Minimum Order：4pcs
Delivery Time：7-15 days
Service：OEM/ODM
Packing：Flight Case & Carton
Detail

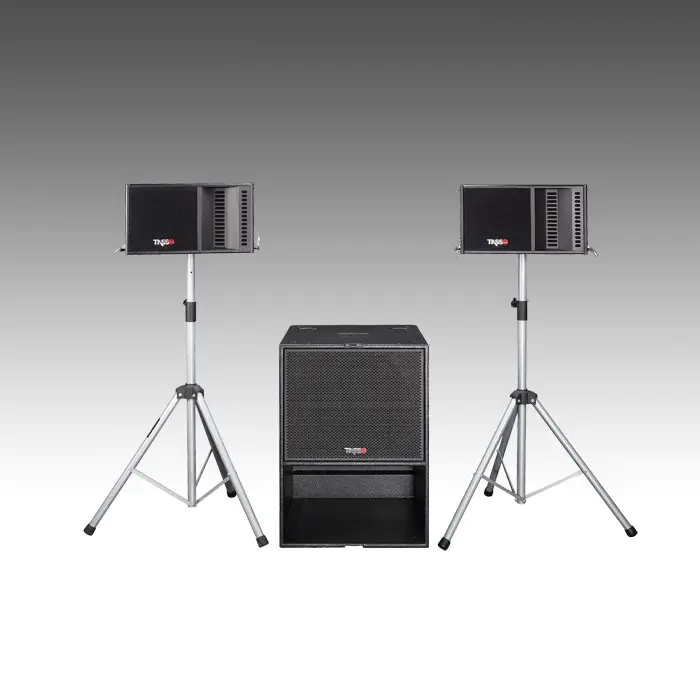

T2 System Quick Details

How to install T2 quickly,pls click this website link to know more:   https://v.qq.com/x/page/d0308w73tia.html


● Structure Patent, designed by European sound engineer
● 3CH Class D amplifier module
● Plug and play, 5 pre-set mode, easy to operate
● Changeable setup, can be ground stacked and hanging
● 2 tops can be packaged into 1 sub
● Sub cover can be used as a DJ table
● Protective ploy fiber cover, anti-scratch and dust-proof
● Mobile live band show, multi-function hall, street music


How to quickly


H102
  Type
Component

Nominal Impedance
RMS Power Handling
Peak Power Handling
Frequency Response
Sensitivity（1W/1M）
Max. SPL
Dispersion
Horn throat size
Voice coil size
Crossover
Dimensions HWD（mm）
Shipping HWD（mm）
NW/GW（Kg）		Horn Loaded Mid-Hi(Powered by Celestion driver)
MF:10"; HF:2"×2 with horn
8Ω
350W
700W
55Hz-19KHz
102dB
130dB
120°H×10°V
1"(25mm)
2"(44mm)
1.5KHz
314×540×314
380×610×390(0.09CBM)
22/24(2pcs)



DSP18A

  Type
Component
Nominal Impedance
RMS Power Handling
Peak Power Handling
Frequency Response
Sensitivity(1W/1M)
Max. SPL
AMP   Output

DSP
Dispersions
Dimension HWD(mm)
Shipping HWD(mm)
NW(Kg)
GW(Kg)		Active Sub Woofer With DSP
18"×1
8Ω
500W
1000W
40Hz-250Hz
104dB
131dB
600W+2×450W/8Ω   RMS
Digital Power Amp.
2 In 4 Out DSP Module
N/A
850×594×684
940×680×930(0.6CBM)
71
128(include 2pcs H102+1pcs DSP18A)

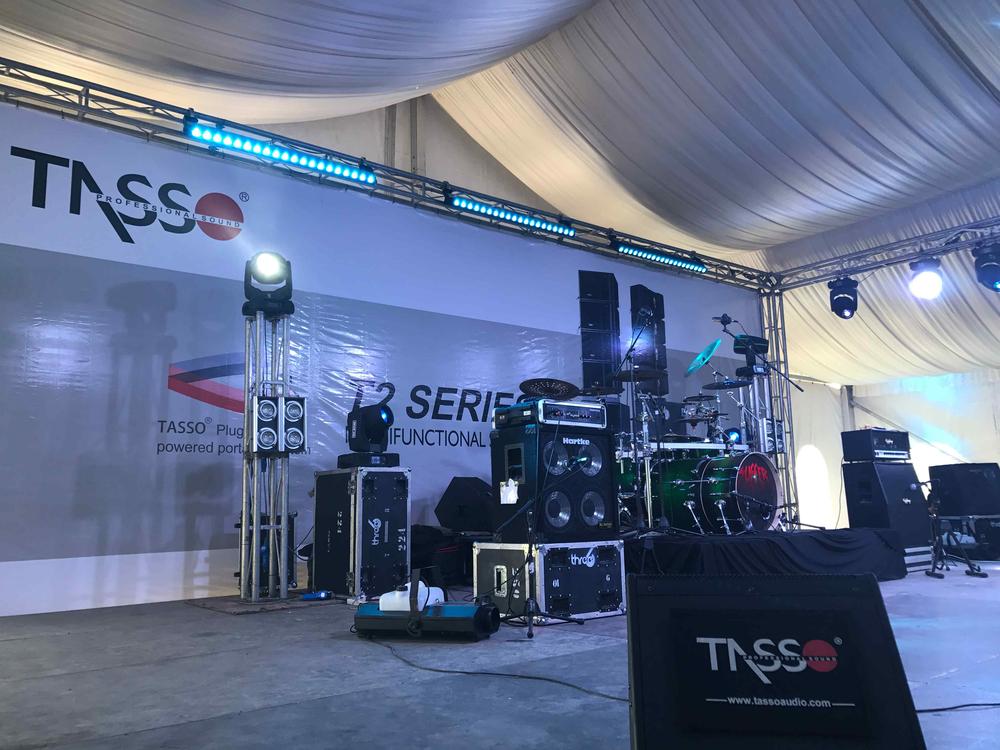

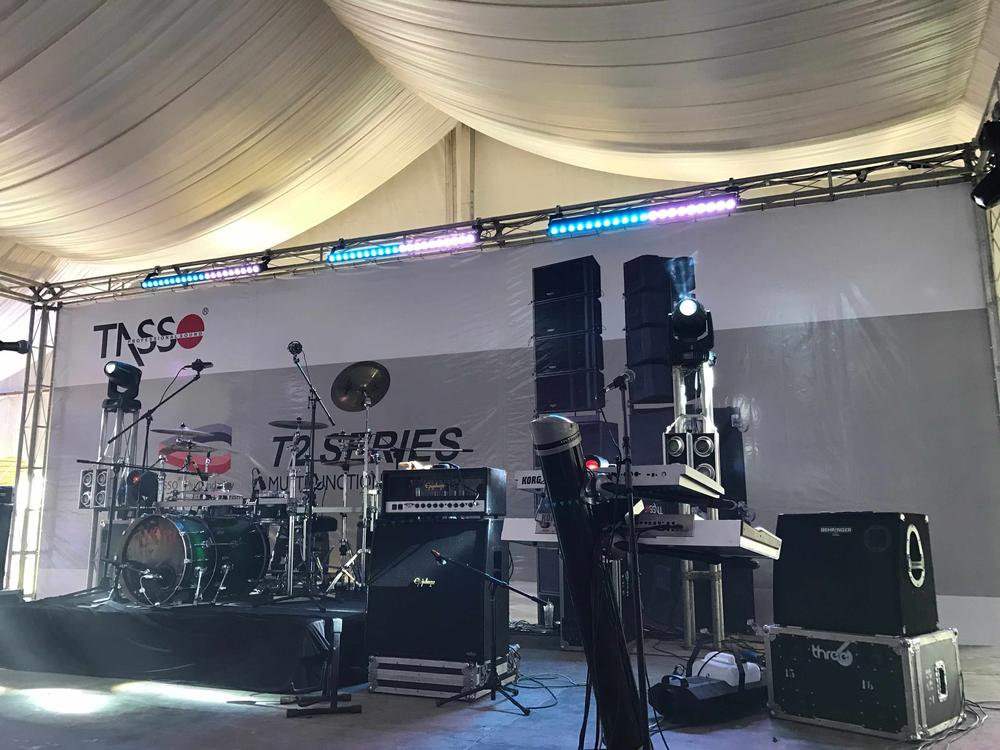

T2 products at TASSO demo in Phnom Penh Cambodia
