New Launched High Efficient Line Array sound system for T4
Price Terms：Exw Factory, FOB, CIF
Payment Terms：T/T, Western Union, Cash
Minimum Order：4pcs
Delivery Time：7-15 days
Service：OEM/ODM
Packing：Flight Case & Carton
Brand Name：TASSO
Detail
H102 Pro
Type
Component
Nominal Impedance
RMS Power Handling
Program Power Handling
Peak Power Handling
Frequency Response
Sensitivity（1W/1M）
Max. SPL
Dispersion
Horn throat size
Voice coil size
Crossover
Dimensions HWD（mm）
Shipping HWD（mm）
NW/GW（Kg）
Horn Loaded Mid-Hi
MF:10"; HF:3"×1 with horn
16Ω
LF:400W ; HF: 150W
LF:800W ; HF: 300W
LF:1600W ; HF: 600W
55Hz-19KHz
103dB
130dB
120°H×10°V
1.4"(38mm)
3"(75mm)
1.5KHz
314×540×314
380×610×390(0.09CBM)
22/44(2pcs)
TES18A
Type
Component
Frequency range (-10dB)
Frequency Response (±3dB)
RMS Power Handling
Program Power Handling
Peak Power Handling
Nominal Impedance
Sensitivity(1W/1M)
Output sound pressure level
Dispersions (HxV)
Amplifier output
Power supply
Horn throat size
Voice coil
Dimension HWD(mm)
Shipping Dimension HWD(mm)
NW (kg)
Active Subwoofer
1x18" Cone Speaker unit
30Hz-400Hz
35Hz-250Hz
600W
1200W
2400W
8Ω
104dB
131dB(Peak137dB)
N/A
2400W+2×1000W （8Ω)
AC~90V-264V
N/A
100mm(4”)
690x542x745
1160*620*920 ( 0.66CBM)
61
T2 Module
New K3 Module
Amplifier Channels
3
4（2 channels bridged to drive subwoofer）
Power Converter
Not including PFC
Include PFC global voltage
Rated Power Handling（8Ω）
600W+2×450W
2400W+2×1000W
Rated voltage
AC~160V-250V
AC~90V-264V
Power factor
0.8
＞0.9@ 4Ωfull power
DSP Sampling rate
48K 32BIT
48K 32BIT
Software
T2 DSP online software
Suitable to T2 online software
Connector
USB
Available for USB and RS485
Usage Pattern
4 grade，Range switch
50 grade for user setting, 10 grade factory preset and digit menu
Maximum working temperature
60℃
65℃
K3 Power amplifier
The amplifier display has a level indicator with an overload warning
The power amplifier module is designed for 4 channels, two of which are bridged to drive subwoofer in the T2 system, and other two channels to drive 2pcs top speakers respectively. The power amplifier module is equipped with PFC, namely active power factor correction, and its power utilization rate is over 90%. Therefore, the power amplifier is not only more powerful, but also more energy saving and lower heat generation, which also brings more abundant stability factors.
Item
Electronic parameter
Function of DSP
2 inputs 4 outputs. each input channel has gain, equalization, crossover, noise gating, delay. Each output contains phase polarity, gain, delay, equalization, crossover, limiter, mute switch module.
Adjustment for input gain
-40dB--+12dB continuously adjustable，0.1dB step
Input EQ
10 segment PEQ
Input Delay
0-1999.0mS continuously adjustable，0.01mS step，Available unit for CM and FT
Adjust range for Output gain
Same as input gain
Output EQ
7 grade PEQ, mold of PEQ，LOW-SHIFT，Hi-SHIFT，ALL PASS etc are available
Output delay
Same as input delayer
Power amplifier module
2400W（bridged）+2*1000W/8Ω
Signal connector
One PowerCON power socket,2 XLR-F analog input,2 XLR-M analog loop output,1 NL4 output of loudspeaker（±1 Transmission channel 1，±2 Transmission channel 2）,2 RS-485 control RJ-45 port,1 USB port.
Other configuration
2 line LCD multi-function display. A three-dimensional shuttle knob ACTS as a menu control
Advantages - For connection function

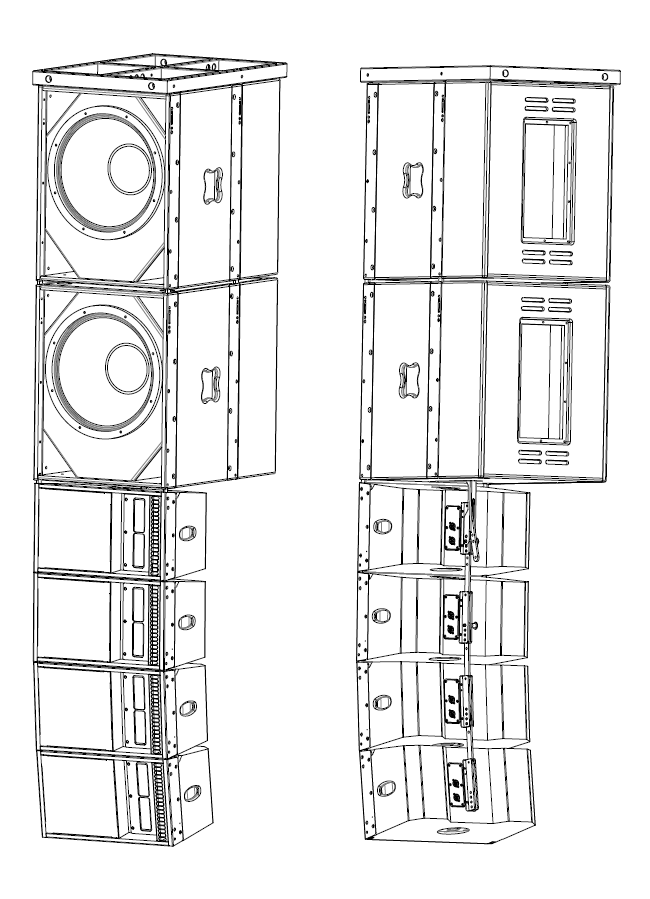

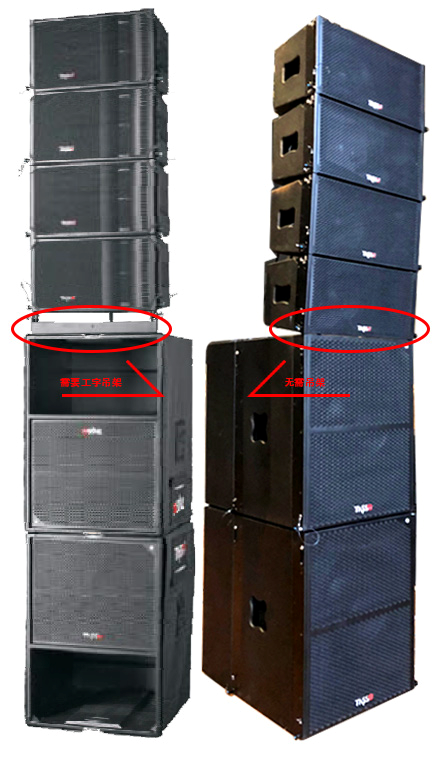

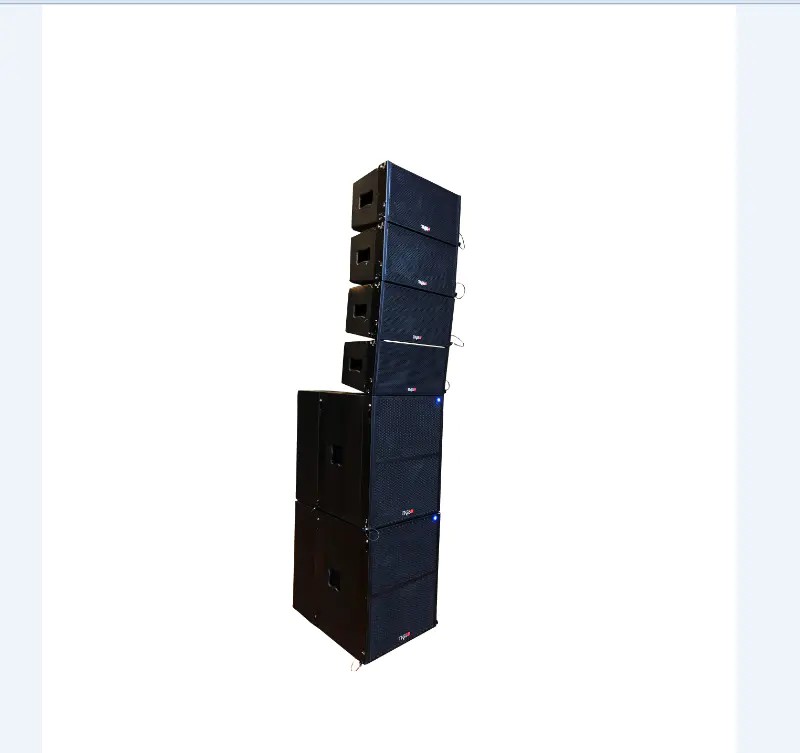

Stacking for old type： Stacking for new type：（More convenience and saving frame，easy connect）

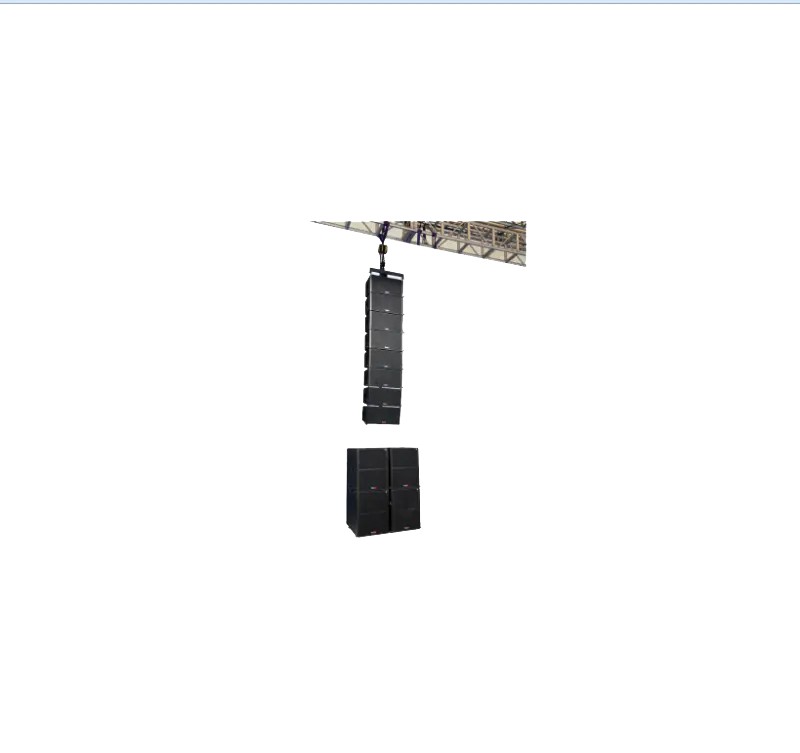

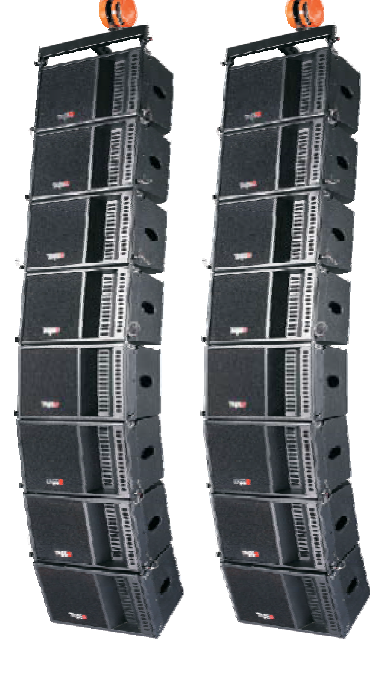

Line array hanging(old type)： Line array hanging(new type)：（hanging the subwoofer）
