Lark 808HA + D212BA Integrated Hybird Line Source Array Speaker System LARK Series

Lark 808HA + D212BA Integrated Hybird Line Source Array Speaker System LARK Series

Price Terms:
Exw Factory, FOB, CIF
Payment Terms:
T/T, Western Union, Cash
Minimum Order:
2 sets
Delivery Time:
7-15 days
Service:
OEM/ODM
Packing:
Flight Case & Carton
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

TASSO latest LARK series (consists of Lark 808HA + D212BA) is a high-end compact line array system designed for high-definition voice and music transmission in challenging venues. Especially in the natural reverberation of large places long distance application, with high-definition voice and music reproduction of the outstanding acoustic performance.

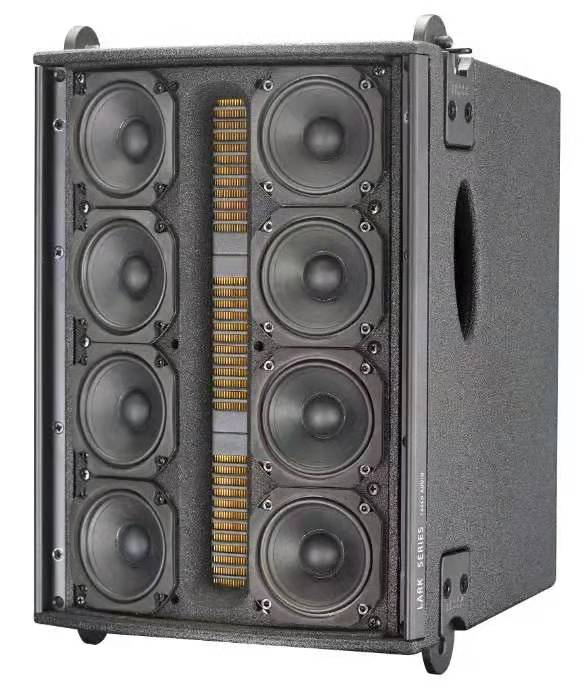

Lark 808HA

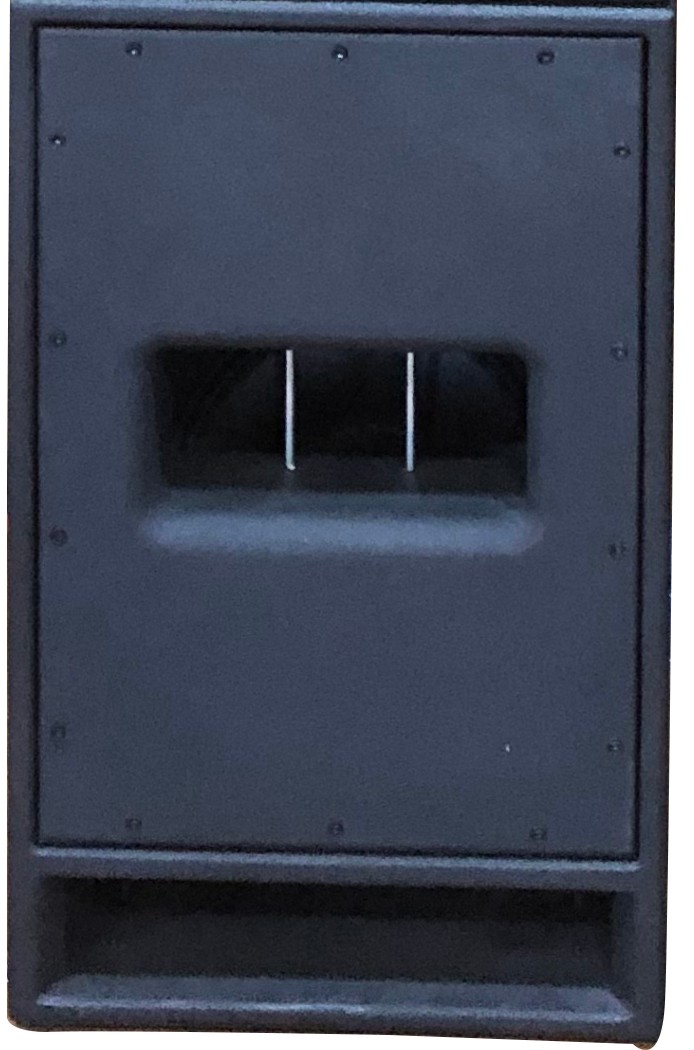

D212BA



ModelLARK 808HA

D212BA

Speaker Components8 x 3'' Nd / 3 x 1"Nd Soft Dome Tweet-ERDual 12'' WOOFER
DescriptionCombined Hybird Line Source Array Speaker System

Composite rewind woofer

system

Power AES / PeakLF:240 W / 960 W ; HF: 90 W / 320 W1000W
Impedance nominal

SPL

1W / Peak @ 1 m

123dB(Peak 129dB)

141dB SPL peak
Useble Range90 Hz - 22 kHz ( -10 dB )

38Hz-250Hz

Tuning Frequency excursion mini-mum120 HzN/A
X - Over point acoustical
Depends on preset Depends on preset
Coverage horizontal / Vertical 120° x 15°N / L
Mechanical Splay Angle 0°  -8°
Electronic partBuilt - in 2* 600W power amplifier and DSP

Built - in 4*1000w power amplifier and DSP;

Bridge mode drives per woofer.

Connectors1 XLR input, 1 XLR link-out, 1 PowerCON, 1 PowerLOOP,1 USB, 2 RJ45 RS4851 XLR input , 1 XLR link-out, 1 PowerCON, 1 Powe-LOOP, 1 USB, 2 RJ45 RS485
Coding:NonNon
Weight ( KG )9.3

50

Size ( height x width x depth ) ( mm )375*270*285675x425x640
